Rook

Rook

The source for the diagrams, can be found as .graphml at the same path as the images.

The source for the diagrams, can be found as .graphml at the same path as the images.

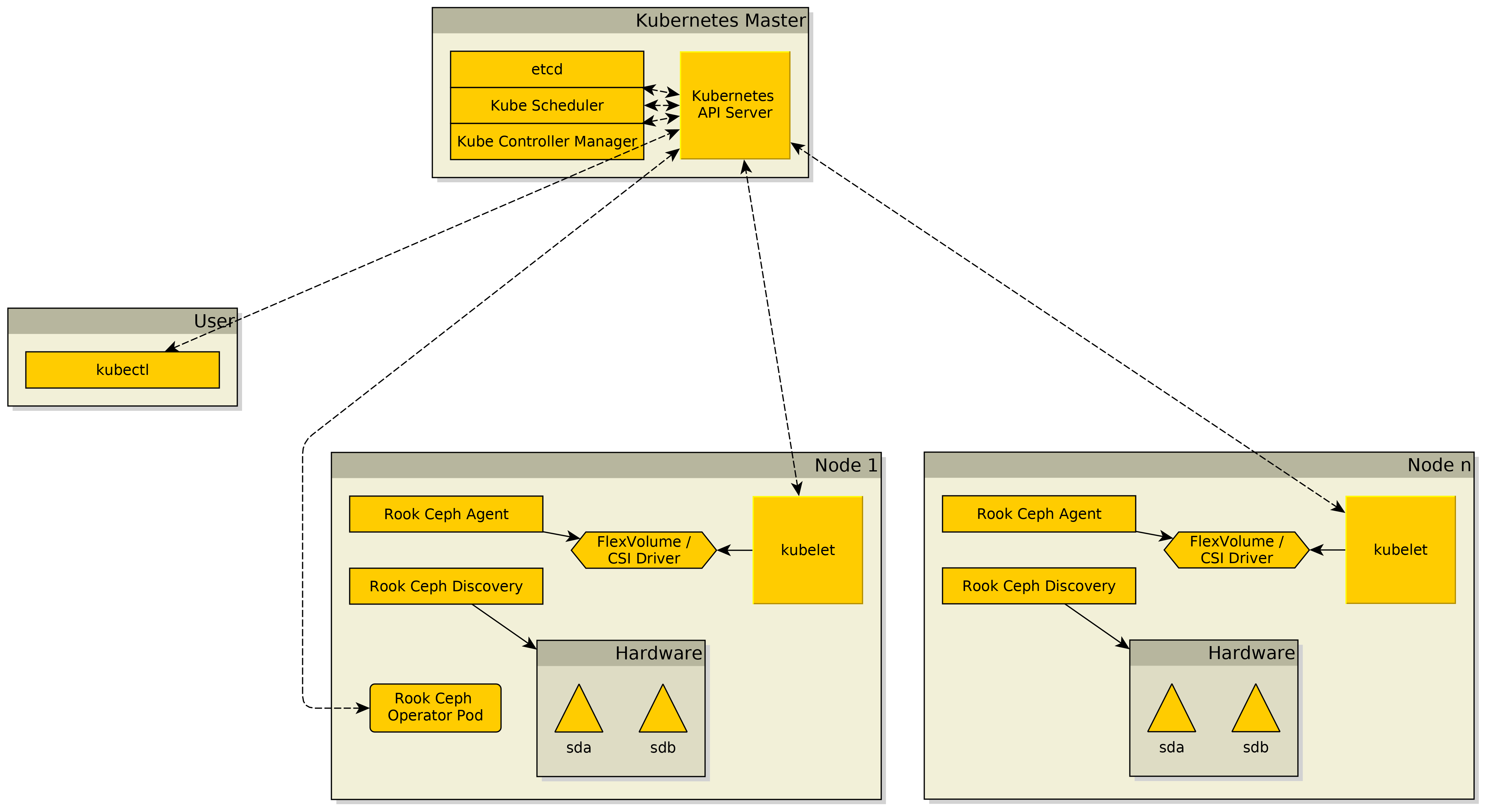

Rook Ceph Components

Where the "basic" components are the rook-ceph-agent and rook-discover DaemonSet.


Info:
  • Rook Ceph Discovery DaemonSet is only started after at least one CephCluster has been created!
  • The Rook Ceph Agent was used in earlier Rook Ceph versions for the "Flex driver" before the swaitch to use, e.g., Ceph's CSI driver.
